Suspension Components Polyurethane Front End Rebuild Kit - Page 10 of 12 |
 |

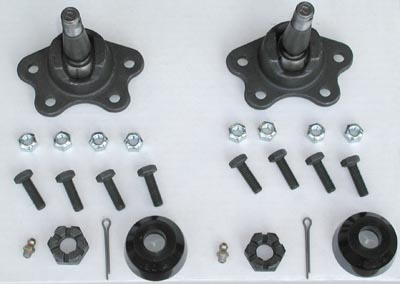

These are the new upper ball joints, complete with nuts, bolts, castle nuts, cotter pins, grease fittings, and polyurethane boots. |
 |

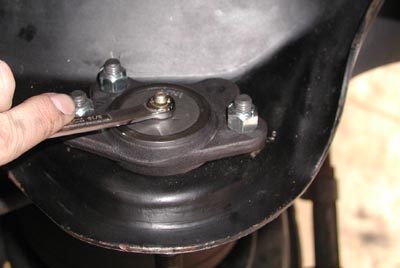

Bolt in the new ball joints, and torque to spec. Then install the grease fitting. |
 |

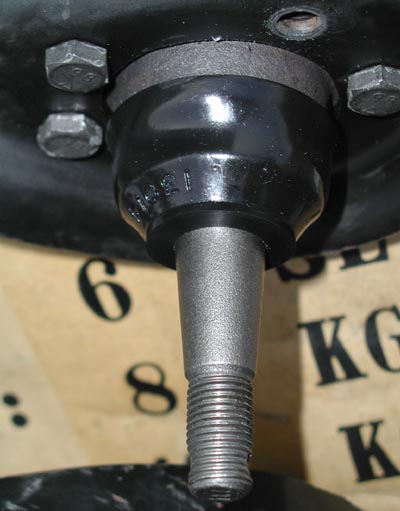

Once the ball joints are in
place, install the polyurethane upper ball joint boots.
Now mount the upper control arms on the truck. Using the notes, return the alignment bolts to the proper positions. You should have your truck aligned once all work is completed, but this will set it close. |
